Development Device Matrix

X1 Devices

The following devices can utilize the RDK Appserviced Gateway App Launcher.

Image	Device	Coax vs IP	IPv4 vs IPv6	Chipset	DRAM	Resolutions	Graphic Libraries	DRM	Media codecs	Experience

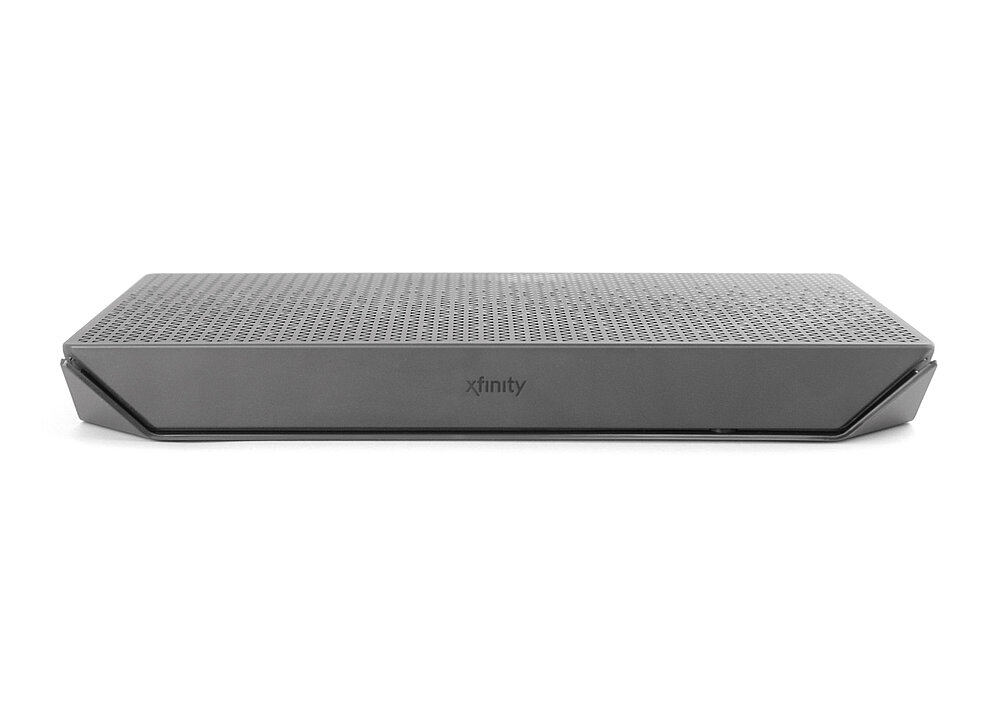

	Arris XG1v4	IPTV	IPv6	Broadcom BCM7268(ARM Quad Core 14K)	2 GB	Output: Up to 4k2Kp60 UI: 720p	Open GL ES 2.0	PlayReady DRM 2.5	AVC(video), HEVC(video) , E-AC-3(audio), E-AC-3 w/Atoms(audio)(Optional), HDR10	X1

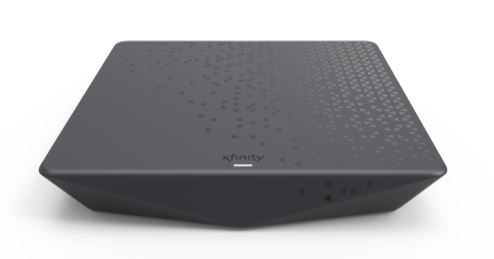

	Technicolor Xi6	IPTV	Supports both	Broadcom BCM7268(ARM Quad Core 14K)	2 GB	Output: Up to 4k2Kp60 UI: 720p	Open GL ES 2.0	PlayReady DRM 2.5	AVC(video), HEVC(video), E-AC-3(audio), E-AC-3 w/Atoms(audio)(Optional), HDR10 and Dolby Vision (UHD)	X1, Flex
	Arris Xi6	IPTV	Supports both	Broadcom BCM7268(ARM Quad Core 14K)	2 GB	Output: Up to 4k2Kp60 UI: 720p	Open GL ES 2.0	PlayReady DRM 2.5	AVC(video), HEVC(video), E-AC-3(audio), E-AC-3 w/Atoms(audio)(Optional), HDR10 and Dolby Vision (UHD)	X1, Flex

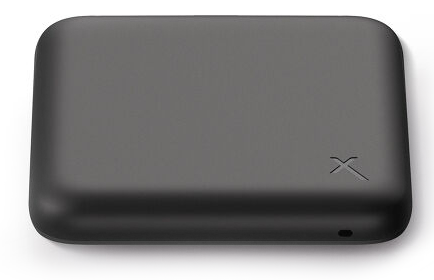

	Sercomm XiOne	IPTV	Supports both	RTD1319	4 GB	Output: Up to 4k2Kp60 UI: 720p	OpenGL ES 3.2, Vulkan 1.0 and OpenCL 2.0	PlayReady DRM 2.5	AVC(video), HEVC(video), E-AC-3(audio), E-AC-3 w/Atoms(audio)(Optional), HDR10 and Dolby Vision (UHD)	Flex, Xumo

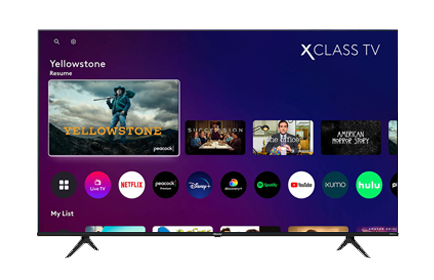

	X Class (HSTP21MWR)	IPTV	Supports both	T962X3	3 GB	Output: Up to 4k2Kp60 UI: 720p	OpenGL ES 3.2, Vulkan 1.1 and OpenCL 2.0	PlayReady DRM 2.5	AVC(video), HEVC(video), E-AC-3(audio), E-AC-3 w/Atoms(audio)(Optional), HDR10 and Dolby Vision (UHD)	Xumo TV
	Sercomm XiOne	IPTV	Supports both	BCM72174	4 GB	Output: Up to 4k2Kp60 UI: 720p	OpenGL ES 3.2, Vulkan 1.1	PlayReady DRM 2.5	AVC(video), HEVC(video), E-AC-3(audio), E-AC-3 w/Atoms(audio)(Optional), HDR10 and Dolby Vision (UHD)	Flex, Xumo
	WNC XiOne	IPTV	Supports both	RTD1319	4 GB	Output: Up to 4k2Kp60 UI: 720p	OpenGL ES 3.2, Vulkan 1.0 and OpenCL 2.0	PlayReady DRM 2.5	AVC(video), HEVC(video), E-AC-3(audio), E-AC-3 w/Atoms(audio)(Optional), HDR10 and Dolby Vision (UHD)	Flex, Xumo
	XUMO TV	IPTV	Supports both	T962X3	3 GB	Output: Up to 4k2Kp60 UI: 720p	OpenGL ES 3.2, Vulkan 1.1 and OpenCL 2.0	PlayReady DRM 2.5	AVC(video), HEVC(video), E-AC-3(audio), E-AC-3 w/Atoms(audio)(Optional), HDR10 and Dolby Vision (UHD)	Xumo TV

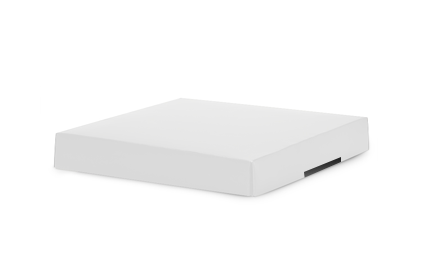

	ES1	IPTV	Supports both	RTD1315C	2 GB	Output: Up to 4k2Kp60 UI: 720p	OpenGL ES 3.2, Vulkan 1.2 and OpenCL 2.0	PlayReady DRM 2.5	AVC(video), HEVC(video), E-AC-3(audio), E-AC-3 w/Atoms(audio)(Optional), HDR10 and Dolby Vision (UHD)	Xumo
	X Class (HSTP11MWR - 43" & HSTP11MWR50 - 50")	IPTV	Supports both	T962X3	2 GB	Output: Up to 4k2Kp60 UI: 720p	OpenGL ES 3.2, Vulkan 1.1 and OpenCL 2.0	PlayReady DRM 2.5	AVC(video), HEVC(video), E-AC-3(audio), E-AC-3 w/Atoms(audio)(Optional), HDR10 and Dolby Vision (UHD)	Xumo TV

Legacy Devices

The following devices can utilize the IBIS App Launcher.
